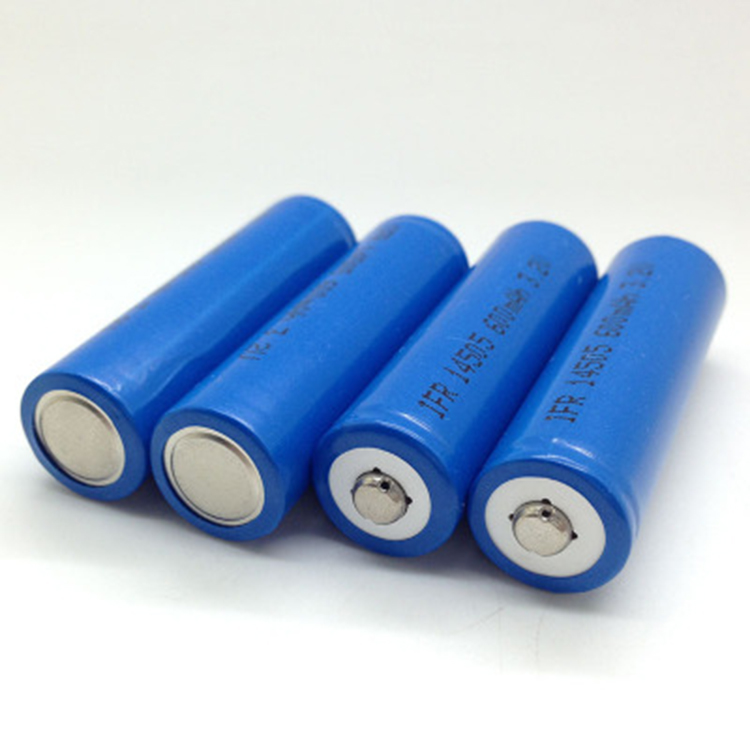

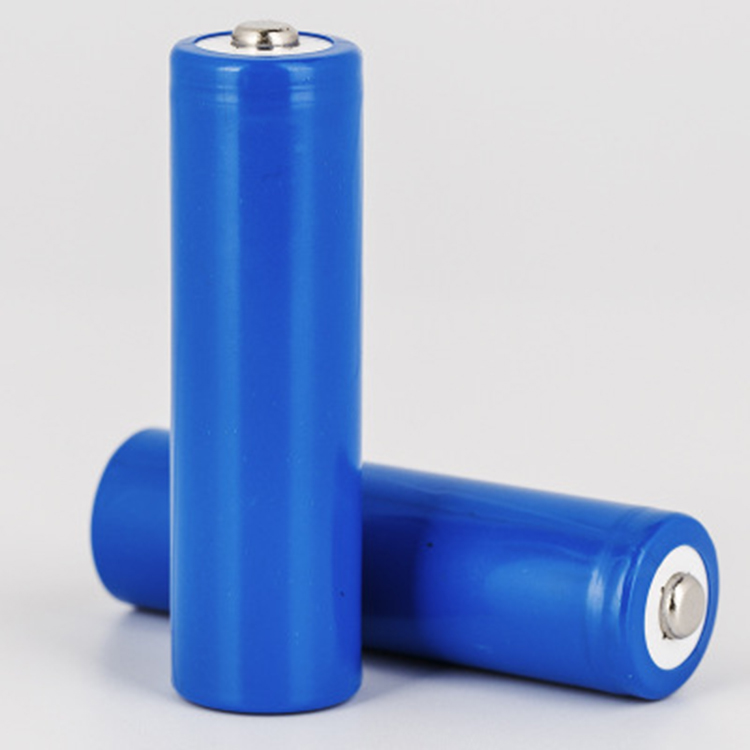

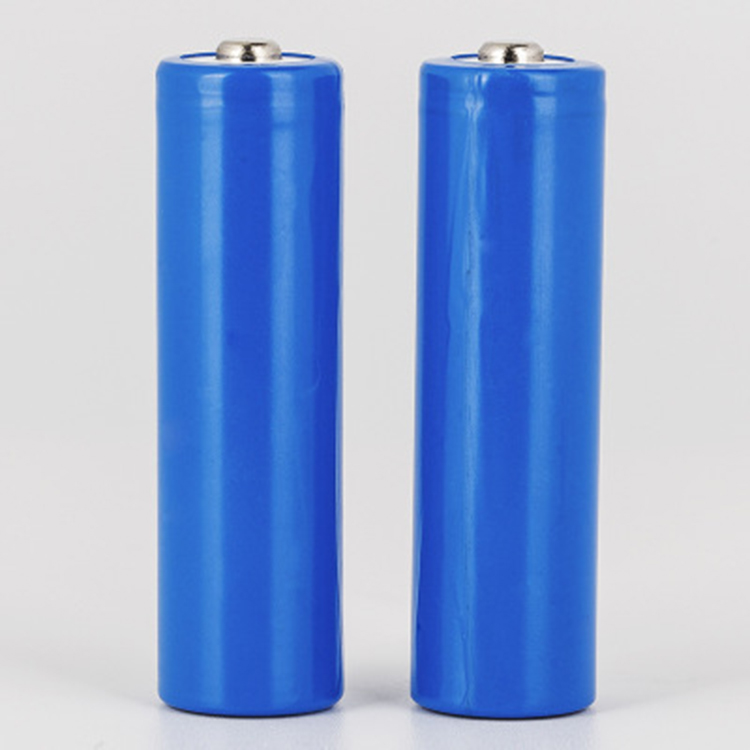

LiFePO4 IFR14500 batterie 3.2v 6.4V 500mah 600mAh li-ion battery for Electric toothbrush flashlight battery

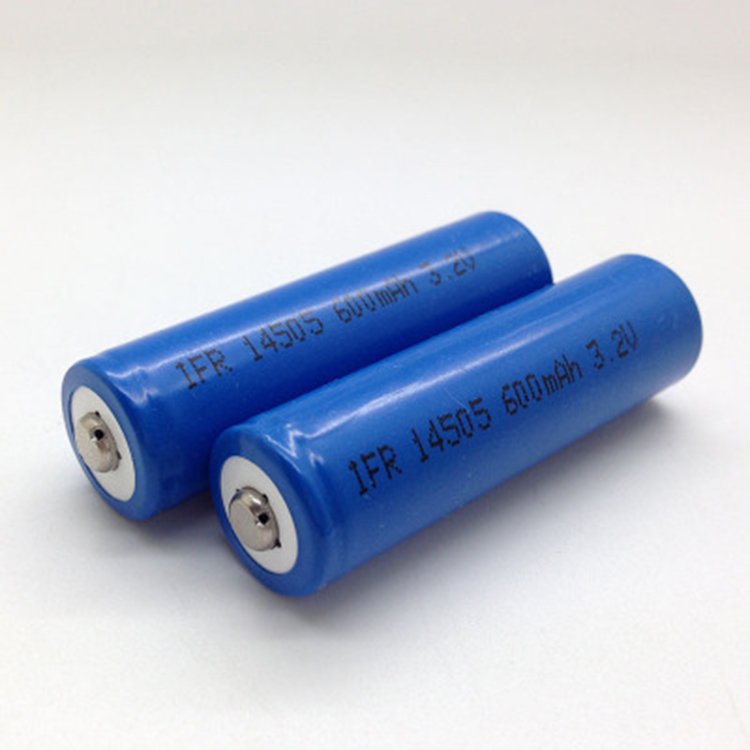

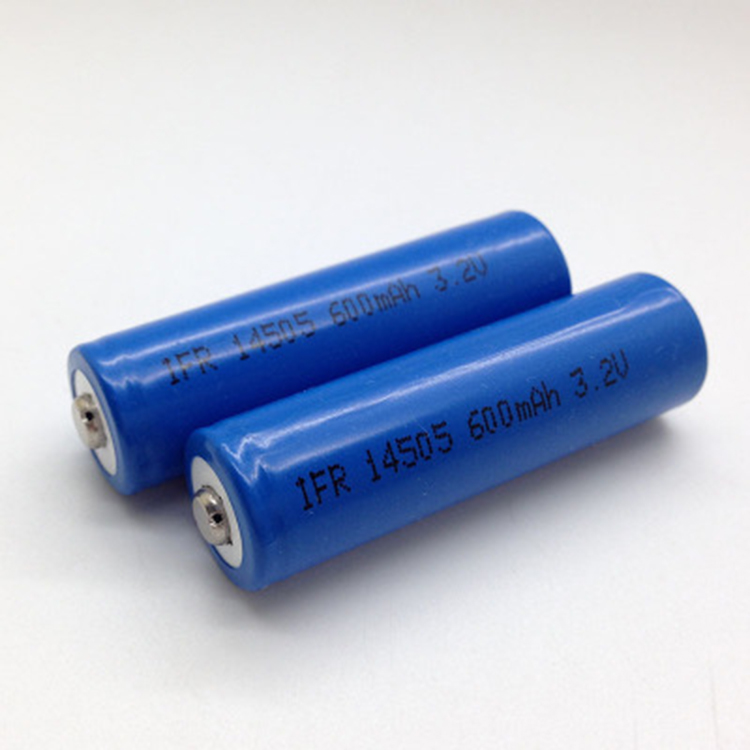

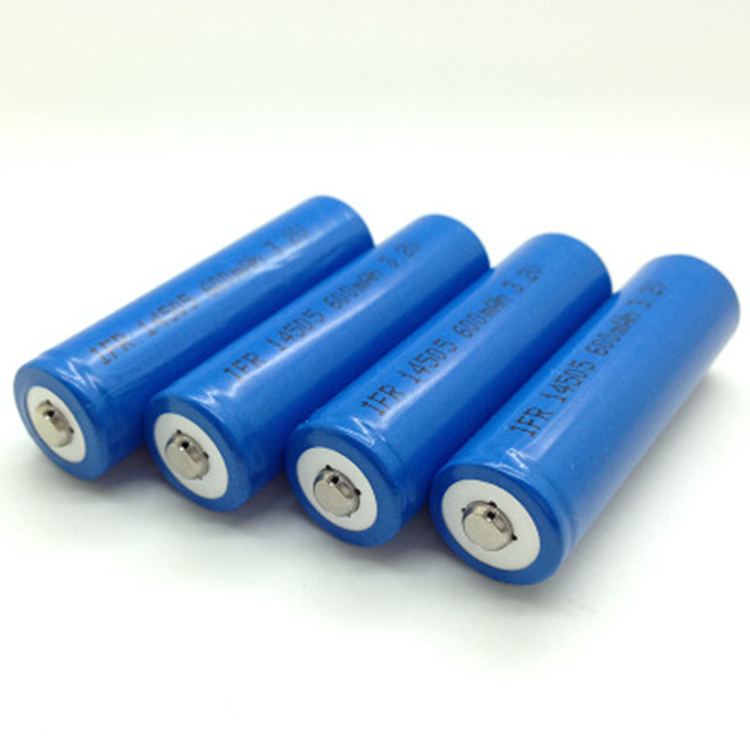

Specification of IFR14505 3.2V 600mAh BATTERY PACK
No.	Item	General Parameter		Remark
1	Rated Capacity	Typical	600mAh	Standard discharge(0.2C5A) after standard charge
		Minimum	5950mAh
2	Nominal Voltage	3.2V		Mean Operation Voltage
3	Voltage at end of Dischargr	2.0V		Discharge Cut-off Voltage
4	Charging at end of Voltage	3.65V
5	Internal Impedance	30mΩ		Internal resistance measured at AC 1KHz after 50% charge. The measure must uses the new battreies that within one week after shipment and cycles no more that 5 times
6	Standard charge	Constant Current 0.5C5A Constant Voltage 3.65V 0.01C5A cut-off		Charge time:Approx 4.0h
7	Standard discharge	Constant Current 0.5C5A end Voltage 2.0V
8	Fast charge	Constant Current 1C5A Constant Voltage 3.65V 0.01C5A cut-off		Charge time:Approx 2.5h
9	Fast discharge	Constant Current 1C5A end Voltage 2.0V
10	Maximum Continuous Charge Current	1C5A
11	Maximum Continuous Discharge Current	5C5A		10A(5s)
12	Operation Temperature Range	Charge:0~45℃		60±25%R.H. Bare Cell
		Discharge:-10~60℃
13	Storage Temperature Range	Less than 1 year:-20~25℃		60±25%R.H. at the shipment state
		Less then 3 months:-20~40℃
14	Weight	Approx:45g		FYI Initial Dimension
15	Pack Dimension	Height:65.2±0.3mm(h)
		Width:26.5±0.25(d)

Features:

1. High current discharge .
2. Long cycle life, about 2000 charge/discharge cycles.
3. Be charged & discharged at anytime because of no-memory effect.
4. Environmentally compatible.
5. can be flexibly made into battery packs with different voltages, capacities, and size;

6. Excellent safety performance, no explosion, no fire
